Canon VB-M641V

VB-M641V

Keep every angle covered

VB-M641V

Korzyści

    • High quality images day or night with 1.3 MP resolution
    • Superb low light performance and ultra wide coverage
    • Quick and easy installation with simple connections
    • Additional Intelligent Intruder and Scream detection
    • Enhanced bandwidth management and bit rate control

Cechy szczegółowe

Przyjrzyj się dokładniej produktowi Canon VB-M641V

High quality images day or night with 1.3 MP resolution

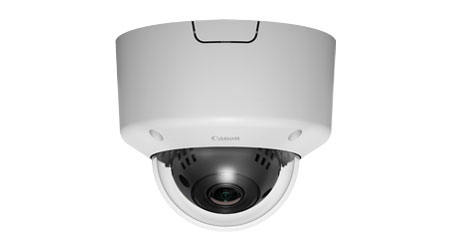

The compact VB-M641V is an IK10 vandal-resistant Fixed Dome camera that effortlessly captures everything in high quality 1.3 MP images day or night. Designed for indoor installation in a wide range of environments it features a Super-UD lens that provides maximum IR support and true Day and Night switching.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Quick and easy installation with simple connections


The VB-M641V offers reduced installation times and cost thanks to an improved PTRZ lens mechanism with increased shock and vibration resistance, which allows quick and easy remote set up of camera angles from a PC. The camera also includes support for Audio and Alarm inputs and outputs for greater versatility.

Enhanced bandwidth and bit rate control


Enjoy improved network bandwidth management and enhanced bit rate control thanks to optimised H.264 encoding and ADSR (Area-specific Data Size Reduction) technology. ASDR allows you to set the pre-configured image quality to 8 distinct areas within the field of view to lower the cameras H.264 bit rate.

Additional intelligent intruder and scream detection


The Industry leading range of inbuilt analytics functions, which can automatically alert operators to alarming situations and activate recording, has been enhanced with the addition of Intruder and Scream detection. Intruder Dete

Dane techniczne produktu

Więcej informacji o produkcie Canon VB-M641V, jego cechach i możliwościach.

DIGIC NET II

Wydajne przetwarzanie sieciowe

Digic DV III

Zarządzanie jakością obrazu i sterowaniem

1.3 Mega Pixel

Wysoka jakość obrazu

IK10

Certyfikat wandaloodporności

Auto DayNight

Zdejmowany filtr podczerwieni

Intelligent Function

Analiza zawartości wideo

Intrusion Detection

Ochrona strefy

Scream Detection

Wykrywanie dźwięku

Power over Ethernet

PoE (Power over Ethernet)

ADSR

Dodatkowe sterowanie przepustowością

Linked Event

Alarmy warunkowe

microSD

Nagrywanie lokalne

CCMT

Zarządzanie wieloma kamerami

  • Jednostka główna VB-M641V
  • Instalacyjny dysk CD-ROM
  • Płyta do montażu na suficie
  • Wkręty montażowe
  • Przewód uziemiający i śruby mocujące
  • Klucz
  • Szablon
  • Złącze zasilania
  • Przewód interfejsu audio
  • Instrukcja instalacji
  • Karta gwarancyjna
  • Ulotka do karty gwarancyjnej
  • Opakowań

Kalkulator kąta widzenia (AOV)

Kalkulator wymaganego miejsca na dysku (RDS)

Symulator układu aparatów (CLS)
